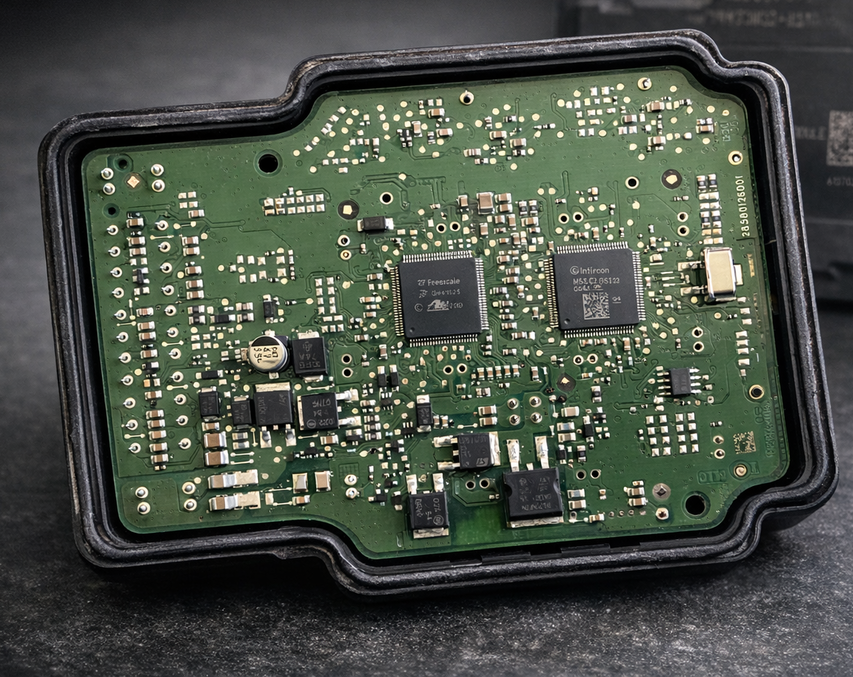

Yamaha XT1200Z Super Tenere 2012 — ABS Module Repair

ABS unit arrived completely unresponsive. Board-level diagnostics confirmed dead main processor as root cause.

Work performed:

• Full board diagnostics to identify failure point
• Dead main processor confirmed — component-level fault isolated
• Processor removal and pad preparation
• BGA/QFP reballing and new processor installation
• Firmware flash and module initialization
• Bench test and full ABS function verification

Result: Module fully restored to factory operation. ABS functionality confirmed across all test cycles.
